A system engineered to deliver superior simulation performance at a cost effective price. Provides a 135º field of view.

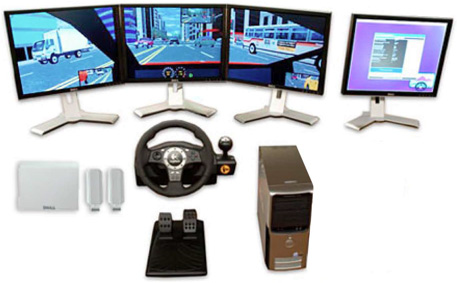

The STISIM Drive® M100WS system includes three driving displays that provide a 135°driver field-of-view, and commercial driving controls.

The 100WS system comes with over one hundred forty ready to run driving scenarios that provide diverse driving situations, customizable roadway environments, and uses an extensive library of roadway objects. The system also allows for user definable data collection. All STISIM Drive® systems come with an extensive user base supported by hundreds of peer reviewed publications. The STISIM Drive® M100WS system will enable the end user to achieve objective, accurate and repeatable performance measurements in a cost effective environment.

M100WS System

  • High speed graphics and sound processing
  • More than 140 pre-designed scenarios
  • STISIM Drive® Scenario Definition Language (SDL)
  • Module programming feature
  • Interactive and programmable roadway events
  • Detailed help files, documentation, user resources
  • Scenario playback
  • Transmission options
  • Realistic roadway environments
  • Ready to drive, test, and evaluate
  • Modify existing or create custom scenarios
  • Control events, signal lights, pedestrians, vehicle traffic
  • Programming experience not required
  • Advanced scenario and configuration design
  • Cue scenario events dynamically
  • Ease of operation and maintenance
  • Visual replay of previous sessions
  • Accident Counts: Vehicle, pedestrian, obstacles, off-road
  • Brake and Accelerator: Speeding behavior, reaction time, time to collision, tailgating
  • Steering and Handling: Lane position and deviation, centerline and road edge crossings
  • Driver Compliance/Attention: Signal lights, signs, turning, divided attention
  • User selectable data: Programmable via Scenario Definition Language (SDL)
  • Computer: Delldesktop workstation with high performance nVIDIA graphics card
  • Driver Display: Minimum 22″ LCD (3 units) for 135° field of view
  • Operator Display: Minimum 20” LCD (1 unit) shows real time summary of driving data
  • Steering Wheel: Logitiech G29 (Force Feedback, 9000rotation)
  • Gas and Brake Pedals: Logitech® G29
  • Hardware License Key: Included
  • Electronic documentation: Included
  • Warranty: 1 Year
  • Tech Support: 1 Year
  • Operating System: Microsoft Windows®
  • Software Compatibility: STISIM Drive®DUI Module, STISIM Drive® Open Module
