A system engineered to deliver superior simulation performance and a realistic driving experience at a cost effective price.

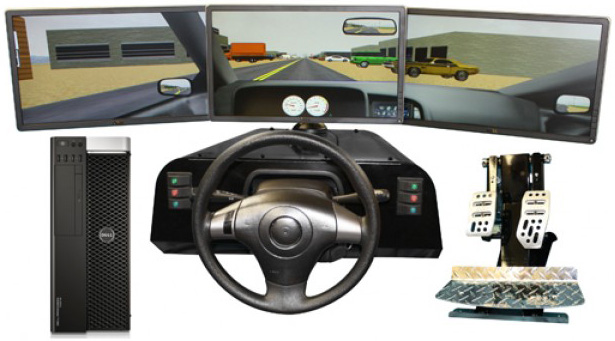

The STISIM Drive® M300WS system includes three driving displays that enable a 135° driver field-of-view, the Systems Technology ADS advanced full size steering wheel with dynamics based feedback, and advanced foot pedals that provide a realistic driving experience. The M300WS system is engineered to deliver superior simulation performance at a cost effective price. The system is capable of supporting user supplied roadway displays that can be any sized monitors or projection displays. STISIM Drive® Scenario Definition Language (SDL), software that allows for custom designed roadway environments and situations, is included.

The STISIM Drive® M300WS system comes with over one hundred forty ready to run driving scenarios that provide diverse driving situations, customizable roadway environments, and use an extensive library of roadway objects. The system also allows for user definable data collection. All STISIM Drive® systems come with an extensive user base supported by hundreds of peer reviewed publications. The STISIM Drive® M100WS system will enable the end user to achieve objective, accurate and repeatable performance measurements in a cost effective environment.

M300WS System

  • ADS steering controller and advanced pedal set
  • High speed graphics and sound processing
  • More than 140 pre-designed scenarios
  • STISIM Drive® Scenario Definition Language (SDL)
  • Module programming feature
  • Interactive and programmable roadway events
  • Detailed help files, documentation, user resources
  • Scenario playback
  • Transmission options
  • Realistic roadway environments
  • Ready to drive, test, and evaluate
  • Modify existing or create custom scenarios
  • Control events, signal lights, pedestrians, vehicle traffic
  • Programming experience not required
  • Advanced scenario and configuration design
  • Cue scenario events dynamically
  • Ease of operation and maintenance
  • Visual replay of previous sessions
  • Accident Counts:Vehicle, pedestrian, obstacles, off-road
  • Brake and Accelerator:Speeding behavior, reaction time, time to collision, tailgating
  • Steering and Handling:Lane position and deviation, centerline and road edge crossings
  • Driver Compliance/Attention:Signal lights, signs, turning, divided attention
  • User selectable data:Programmable via Scenario Definition Language (SDL)
  • Computer: Dell desktop workstation with high performance nVIDIA graphics card
  • Driver Display: Minimum 22″ LCD (3 units) for 135° field of view
  • Operator Display: Minimum 20” LCD (1 unit) shows real time summary of driving data
  • Steering Wheel: STISIM Drive®ADS high fidelity advanced control (Active force feedback, 900° rotation)
  • Gas and Brake Pedals: STISIM Drive® advanced pedals
  • Hardware License Key: Included
  • Electronic documentation: Included
  • Warranty: 1 Year
  • Tech Support: 1 Year
  • Optional Hardware: Manual transmission
  • Operating System: Microsoft Windows®
  • Software Compatibility: STISIM Drive® DUI Module, STISIM Drive® Open Module
